Interpretability: circuits, attribution, and causal interventions

"GPT-2 small uses 26 attention heads to find the indirect object"; "Claude 3.5 Haiku first thinks of Texas internally, then says Austin". What exactly do circuit claims like these say, and what is the evidence? A circuit claim is a causal hypothesis that can be tested by intervention: on some class of inputs, which components, through which paths, carry how much of a behaviour. Activation patching and path patching test it, and attribution graphs automate the step of proposing the hypothesis; but an attribution graph explains a replacement model, and Anthropic itself says it gives a satisfying explanation on only about a quarter of the prompts it tried. For safety evaluation there is so far a set of lab-reported case studies and successes on deliberately implanted problems, but no independently validated general-purpose detector.

Draft, pending review. The site owner has not reviewed this note yet; facts, emphasis and wording may change. Check the primary sources linked in the text before relying on it.

From correlation to causation: activation patching

Probes and attributions only show correlation or local sensitivity. To say a component causes a behaviour, you have to intervene. Activation patching (also called causal tracing or interchange intervention) uses three runs: one on a clean input, one on a corrupted input, and one more on the corrupted input with one component's value replaced by its value from the clean run (patched). The effect is measured as a fraction:

$$ \text{patching effect}=\frac{y_{\rm patched}-y_{\rm corrupt}}{y_{\rm clean}-y_{\rm corrupt}} $$

$y$ is the output metric you care about, such as the probability of the correct answer, or the logit difference between correct and incorrect answers. It can also run the other way: put the corrupted value into the clean run and see how much the behaviour drops. The first is called denoising and asks "is this component enough to rescue the behaviour?"; the second is called noising and asks "can the model do without it?" (terms as in Heimersheim & Nanda, April 2024).

ROME (Meng et al., February 2022) is a classic use. On GPT-2 XL, they took 1,000 facts the model knows and added Gaussian noise with 3 times the standard deviation to the subject token embeddings, which dropped the average probability of the correct answer from 27.0% to 8.47%; then they restored clean hidden states one at a time. The average total effect was 18.6%, and the strongest single states were at the last subject token around layer 15 (average indirect effect 8.7%); at that position, MLP contributions peaked at 6.6% while attention reached only 1.6%. From this the authors concluded that facts are stored in mid-layer MLPs, and they edited facts by directly modifying those MLPs' weights.

Two caveats. Hase et al. (January 2023) found that the layers causal tracing points to do not predict which layer is best to edit: localising and editing are different things. Zhang & Nanda (September 2023) found that changing the metric (probability or logit difference) or the corruption method (adding noise or swapping in a different sentence) can change the localisation result.

By hand: patching a 3-node network (a teaching example)

The small network below is made up, just to see clearly what patching measures. $s=1$ is the clean input and $s=0$ the corrupted one:

A = 2·s
B = 1.5·A
C = ReLU(A − 0.5·B)
y = B + C

Clean run: $A=2$, $B=3$, $C=\mathrm{ReLU}(2-1.5)=0.5$, $y=3.5$. Corrupted run: everything is 0, $y=0$.

Look at row B. Denoising: $A=0$, $B=3$, $C=\mathrm{ReLU}(0-1.5)=0$, $y=3.0$, restoring $3/3.5=86\%$. Noising: $A=2$, $B=0$, and now $C=\mathrm{ReLU}(2-0)=2$, so $y=2.0$, a drop of only $1.5/3.5=43\%$. C normally contributes little, but as soon as B is removed it steps in: it is a backup. Noising alone underestimates B, and denoising alone never shows what C does.

Now path patching (Goldowsky-Dill et al., April 2023): in the corrupted run, send the clean A only along the edge A→B, while C still receives A = 0. Then $B=3$, $C=\mathrm{ReLU}(0-1.5)=0$, $y=3.0$, or 86%. Send it only along A→C: $B=0$, $C=\mathrm{ReLU}(2-0)=2$, $y=2.0$, or 57%. The two paths add up to 143%, not 100%. With nonlinearities, path effects do not simply add, and the question "what share does this path carry?" has to be asked with care.

What a circuit claim looks like: IOI

Wang et al. (November 2022) studied a task called indirect object identification (IOI): "When Mary and John went to the store, John gave a bottle of milk to" should be completed with Mary. GPT-2 small has 12 layers with 12 heads each; over 100,000 examples, the correct name beats the repeated name by 3.56 logits on average, and the model is right in 99.3% of cases.

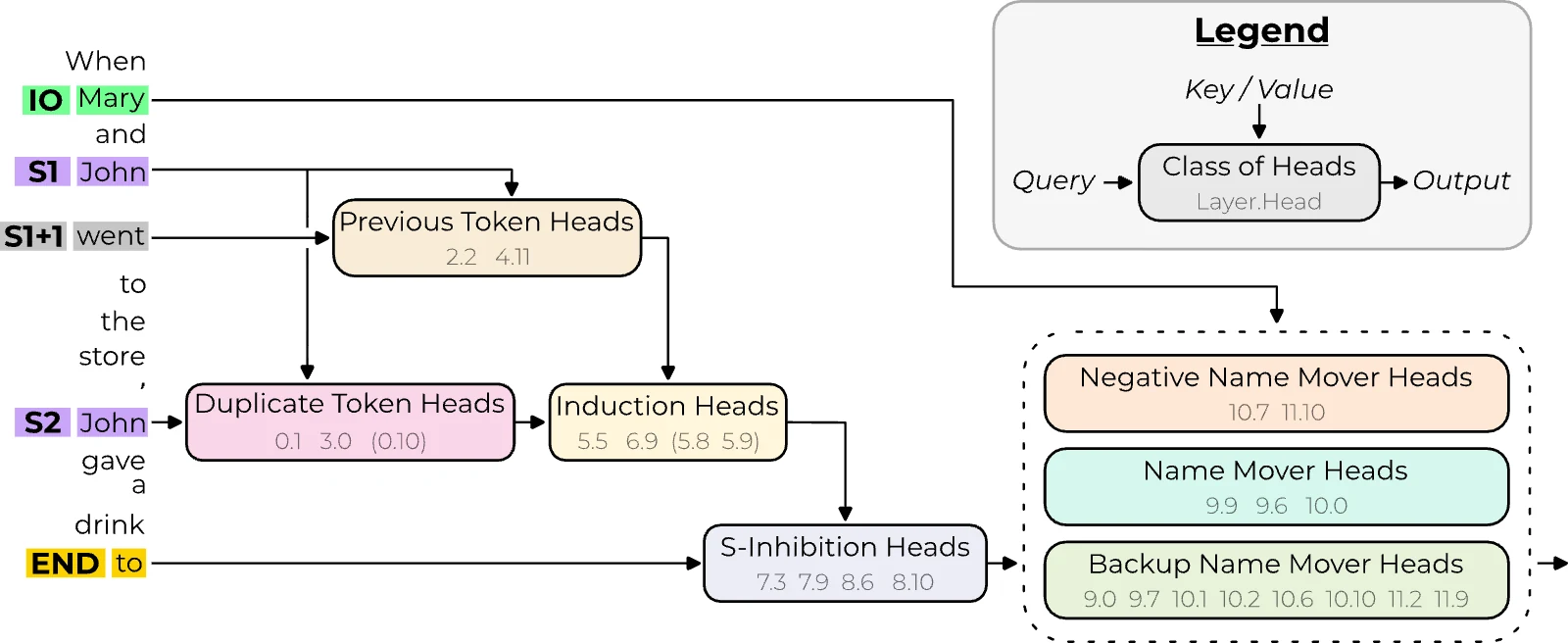

Their circuit has 26 heads in 7 classes. Roughly: duplicate token heads and induction heads (helped by previous token heads) detect that John appeared twice; S-inhibition heads write this into the queries of the name mover heads so that they do not attend to John; name mover heads at the end of the sentence attend to the remaining name, Mary, and copy it to the output; negative name mover heads write in the opposite direction and lower confidence; backup name mover heads do little normally and take over only when the name movers are removed. Components are "removed" by mean ablation: replaced with their average activation over a distribution of sentences containing three different names.

Saying "these heads form a circuit" is not enough, so they test three criteria. Let $F(\cdot)$ be the average logit difference:

• Faithfulness: keeping only the circuit, $F(C)$ is close to the full model's $F(M)$. They measure $|F(M)-F(C)|=0.46$, 13% of 3.56, so the circuit recovers 87%.
• Completeness: removing any set of components $K$ from the circuit should have about the same effect as removing $K$ from the full model.
• Minimality: every component in the circuit is necessary for some $K$.

Completeness exists precisely for backups. Go back to the example above: the circuit {A, B} (with C ablated) outputs 3.0, a faithfulness of 86%, which looks fine; but remove B and the full model still gives 2.0 (C steps in) while the circuit gives 0, a large gap showing that C was left out. The authors themselves write in the abstract: "Though these criteria support our explanation, they also point to remaining gaps in our understanding." The scope of the claim is GPT-2 small, sentences generated from 15 templates, and the choice of mean ablation.

Finding circuits was later automated: on GPT-2 small's "greater-than" task, ACDC selected 68 of 32,000 edges, all of which had been found by earlier manual work, and rediscovered all 5 of the 5 component types (Conmy et al., April 2023). Separately, Makelov et al. (November 2023) warn that patching a subspace can activate a normally dormant parallel pathway and create an illusion; they also treat IOI as a success case, because the earlier manual circuit analysis tells you where the feature lives.

Attribution graphs: automating the hypothesis step

IOI took a great deal of manual work, for a single task. Anthropic's March 2025 Circuit Tracing aims to have the computation on each prompt drawn automatically.

It works in four steps. First, train a cross-layer transcoder (CLT): features at layer $\ell$ read from that layer's residual stream and can write to the MLP outputs of layer $\ell$ and every later layer; the CLTs trained on Claude 3.5 Haiku have between 300 thousand and 30 million features in total. Replacing every MLP with it gives a replacement model; their largest CLT, on an 18-layer small model, gives the same next token as the original model on only 50% of a diverse set of prompts. Second, for a single prompt, freeze the original model's attention patterns and normalisation denominators, and add an "error node" at each position and layer to make up for what the CLT fails to reconstruct, so that the activations and outputs of this local replacement model match the original model exactly. Third, compute edges on this now-linearised graph:

$$ A_{s\to t}=a_s\,w_{s\to t} $$

$a_s$ is the source feature's activation and $w_{s\to t}$ is the "virtual weight" between the two through the residual stream and frozen attention. Fourth, prune weak edges, group features with similar roles into supernodes, and go back to the original model to validate with interventions.

The companion Biology paper reports a set of case studies. The two-step reasoning mentioned at the start: suppressing "Dallas" features weakens the "Texas" features and the downstream "say Austin", while "say a capital" is largely unaffected. Planning in poems: on the newline before a line begins, features for candidate rhyme words (such as rabbit and habit) are already active, and editing them makes the model rewrite the whole line to end in the new word; the authors say they found such planned-word features in about half of the poems they examined. There are also case studies on multilinguality, addition, medical diagnosis, hallucination, refusal, jailbreaks, chain-of-thought faithfulness and hidden goals.

The methods paper has a section on limitations: it does not explain why attention looks at a given position (QK circuits), so in examples such as induction and multiple-choice questions the graph "skips the interesting part"; the CLT does not reconstruct everything, and error nodes sometimes hide the key computation, as on an obfuscated jailbreak prompt where almost all nodes are error nodes; inactive features and inhibition are hard to represent; the graphs are complex; feature splitting and absorption put features at the wrong level of abstraction; it only looks at single prompts, and global circuits are hard; and the replacement model may not use the same mechanism as the original. The Biology paper says attribution graphs give satisfying insight on about a quarter of the prompts tried, and the examples shown are success cases.

Follow-ups: on 2025-05-29 Anthropic open-sourced the tools, which can draw graphs for Gemma-2-2b and Llama-3.2-1b and are integrated with Neuronpedia; the QK attributions of 2025-07-31 write attention scores as a bilinear function of query-side and key-side features, and confirm mechanisms in induction and multiple-choice examples that had previously only been hypothesised. Another route works on training instead: OpenAI trains Transformers in which most weights are zero, and the task circuits pruned out of them are small and readable, but sparser means weaker, and the authors say keeping interpretability beyond tens of millions of non-zero parameters remains a challenge (Gao et al., November 2025, ICML 2026). A February 2026 LessWrong replication (Anthropic Fellows Program, not peer-reviewed) argues that such pruned circuits may be "interpretable yet unfaithful": on a task whose labels were reassigned so that it means nothing, pruning still reached over 95% accuracy with about 30 nodes; the author also notes having switched to zero ablation, and that the original paper's mean ablation might give more faithful circuits (Drori).

How this connects to safety evaluation

Behavioural evaluation and chain-of-thought monitoring depend on what the model does and says. OpenAI found that having another model read the chain of thought catches reward hacking by coding agents, but if that monitor is put directly into the training reward and optimised too hard, the agent learns to hide its intent in the chain of thought and keeps cheating (Baker et al., March 2025). The hope for interpretability is a check that does not rely on the model's own account. For the definition of reward hacking, see Verifiable rewards. These are the public results that can be checked:

How far this goes: probes, steering and dictionary features do well in settings with a known answer (implanted backdoors, hidden objectives), and they have entered labs' pre-deployment audits; but the successes come mostly from deliberately constructed models or lab self-reports, and both Apollo and Anthropic state limitations in the original texts. Dario Amodei's April 2025 essay says Anthropic's goal is for interpretability to "reliably detect most model problems" by 2027, and that on the current trajectory he would bet strongly on interpretability becoming a true "MRI for AI" within 5 to 10 years. That is a company leader's goal and judgement, not a measured result.

What each step of evidence shows

What to watch on this line next

1. Attention and global circuits. QK attributions (July 2025) filled in one piece, but the "satisfying" fraction Anthropic reported in March 2025 was about a quarter. A result that would change the assessment: that fraction rising clearly in later reports, or global circuits that hold across many prompts.
2. Is the replacement model faithful? A short July 2025 Anthropic note uses a toy model to show how transcoders can go wrong; the February 2026 replication questions the faithfulness of pruned circuits. A result that would change the assessment: every graph-based claim being validated by interventions on the original model, with the rate of failed validations published.
3. From constructed models to real deployments. As of October 2026, the detection successes that can be checked are mostly on implanted problems. A result that would change the assessment: interpretability finding, in a production model, a problem that behavioural evaluation missed, reproduced by an independent organisation.
4. What white-box checks and chain-of-thought monitoring each cover. In July 2025 authors from many institutions jointly argued that chain-of-thought monitorability is a "new and fragile opportunity" (Korbak et al.). A result that would change the assessment: a direct comparison of white-box probes and chain-of-thought monitors on the same set of misbehaviours, reporting detection and false-positive rates.

Finally, use the review questions to tie the series together.
